Ball Valves
A BALL VALVE is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball’s hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed. The shut position 1/4 turn could be in either CW or CCW direction. (S = Shut, O = Open)
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. The ball valve’s ease of operation, repair, and versatility lend it to extensive industrial use, supporting varied pressures and temperatures depending on design and materials used.
JGV offer quality approved range of BALL VALVES as per prevailing Industry Standards and as well Client Specifications & Design in varied standard and high grade raw material, to attain maximum level of client satisfaction.

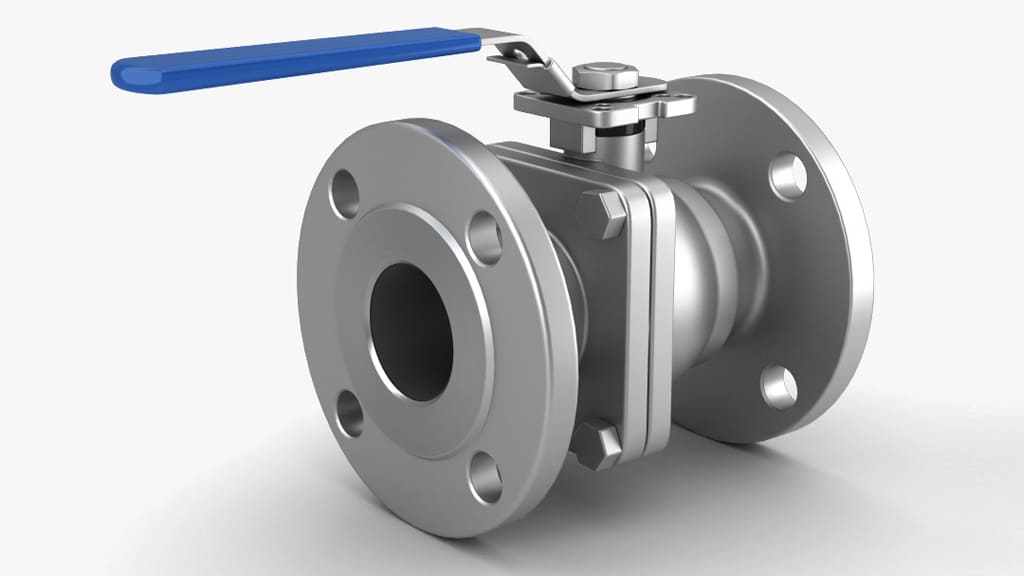

Ball Valve
JGV Types Of Ball Valves
- One / Two / Three Piece, Top Entry & 3 Way Cast Steel Ball Valve
- Three Piece Forged Welded Ball Valve
JGV Ball Valve Range & Specification

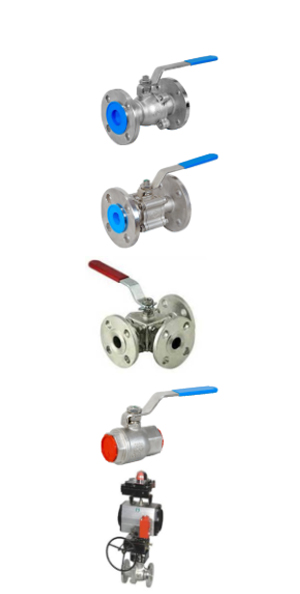

Cast Steel Ball Valve :
| Size | : | 15 mm (1/2″) – 500 mm (20″) |
| Type | : | 1 / 2 / 3 Piece, Full / Reduced Bore, 3 Way (L / T Port), Top Entry, Trunnion Mounted, Antistatic Device, Metal to Metal Seating |
| Operation | : | Lever, Gear, Actuator (Pneumatic, Electrical) |
| Design Standard | : | BS EN ISO 17292 (BS 5351) & API 6D |
| Pressure Rating | : | 150#, 300#, 600# |
| Testing Standard | : | BS EN 12266-1 (BS 6755 Part 1) & API 598 |
| End Connection | : | Butt-weld, Flanged RF Serrated |
| Material Of Construction | : |
Standard – WCB / WCC, LCB / LCC, CF8, CF8M, CF3, CF3M On Request – CN7M, CF8C, Duplex Gr. 4A, Super Duplex Gr. 5A / 6A, Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
| Trim | : | SS 304, SS 316, SS 304L, SS 316L, Monel |
| Seat Materials | : | PTFE (Teflon), CFT, GFT (RPTFE), PEEK, Devlon etc. |
| Customization (On Request) | : |
|

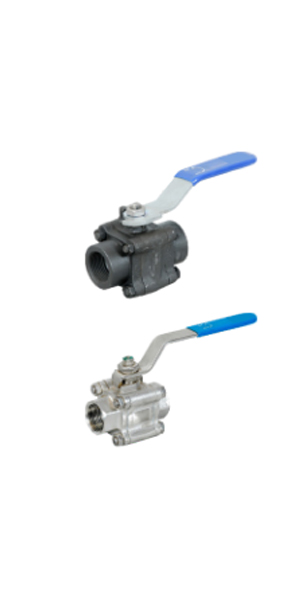

Forge Steel Ball Valve :
| Size | : | 15 mm (1/2″) – 50 mm (2″) |
| Type | : | 3 Piece, Full / Reduced Bore, Antistatic Device, Metal to Metal Seating, Nipple Extension |
| Operation | : | Lever |
| Design Standard | : | BS EN ISO 17292 (BS 5351) |
| Pressure Rating | : | 800#, 1500#, 2500# |
| Testing Standard | : | BS EN 12266-1 (BS 6755 Part 1) |
| End Connection | : | Butt-weld, Weld–Flanged, Socket Weld, Screwed BSP or NPT |
| Material Of Construction | : |
Standard – A105, LF2, F304, F304L, F316, F316L, F22 On Request – F321, F347, Alloy-20, Super Duplex, Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
| Trim | : | 13% CR, SS 410, SS 304, SS 316 |
| Seat Materials | : | PTFE (Teflon), CFT, GFT (RPTFE), PEEK, Devlon etc. |
| Customization (On Request) | : |
|
