Strainers Valves
STRAINERcan be defined as a pipe fitting through which liquid is passed for purification, filtering or separation from solid matter; anything used to strain a liquid; any device functioning as a sieve or filter used to prevent solid bodies from mixing in a liquid stream or flowline.
STRAINERS arrest pipeline debris such as scale, rust, jointing compound and weld metal in pipelines, protecting equipment and processes from their harmful effects, thus reducing downtime and maintenance. Use of rightly selected strainers at correct locations (usually upstream) is a must to protect expensive and critical downstream equipment such as pumps, flow meters, steam traps, control valves etc

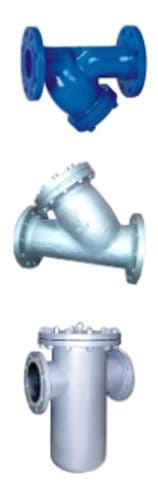

JGV Types Of Strainer
Strainers can be classified into two main types according to their body configuration.
JGV offers a quality-approved range of Strainers as per prevailing Industry Standards as well as Client Specifications & Design in varied standard and high-grade raw materials to attain the maximum level of client satisfaction.
JGV Strainers Valve Range & Specification
| Size | : | 25 mm (1″) – 800 mm (32″) |
| Body & Type | : | Bolted Cover |
| Mesh Size | : | 20 Mesh, 30 Mesh, 40 Mesh, 60 Mesh, or customized as per Client Requirement |
| Design Standard | : | ASME B 16.34 Face to Face Dimensions: ANSI B 16.10 Flanged: ASME B 16.50 On Request: NACE – MR-01-75 |
| Pressure Rating | : | PN 10, PN 16, PN 25, 150#, 300#, 600# |
| Testing Standard | : | API 598 (Body only) |
| End Connection | : | Butt-Weld, Flanged, Socket-Weld, Screwed |
| Material Of Construction | : | Standard: WCB, CF8, CF8M, CF3,
CF3M, IS 2062 Gr.B On Request: CN7M, CF8C, Duplex Gr. 4A, Super Duplex Gr. 5A / 6A, Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
General Applications
Strainers are industrial components engineered for mechanically removing unwanted solid matter from liquid, gas, or steam pipelines by means of a precise perforated or wire mesh straining element. They are strategically integrated inside system lines to safeguard critical mechanical setups including pumps, continuous meters, industrial s, steam traps, pressure regulators, and downstream process equipment from damage.
