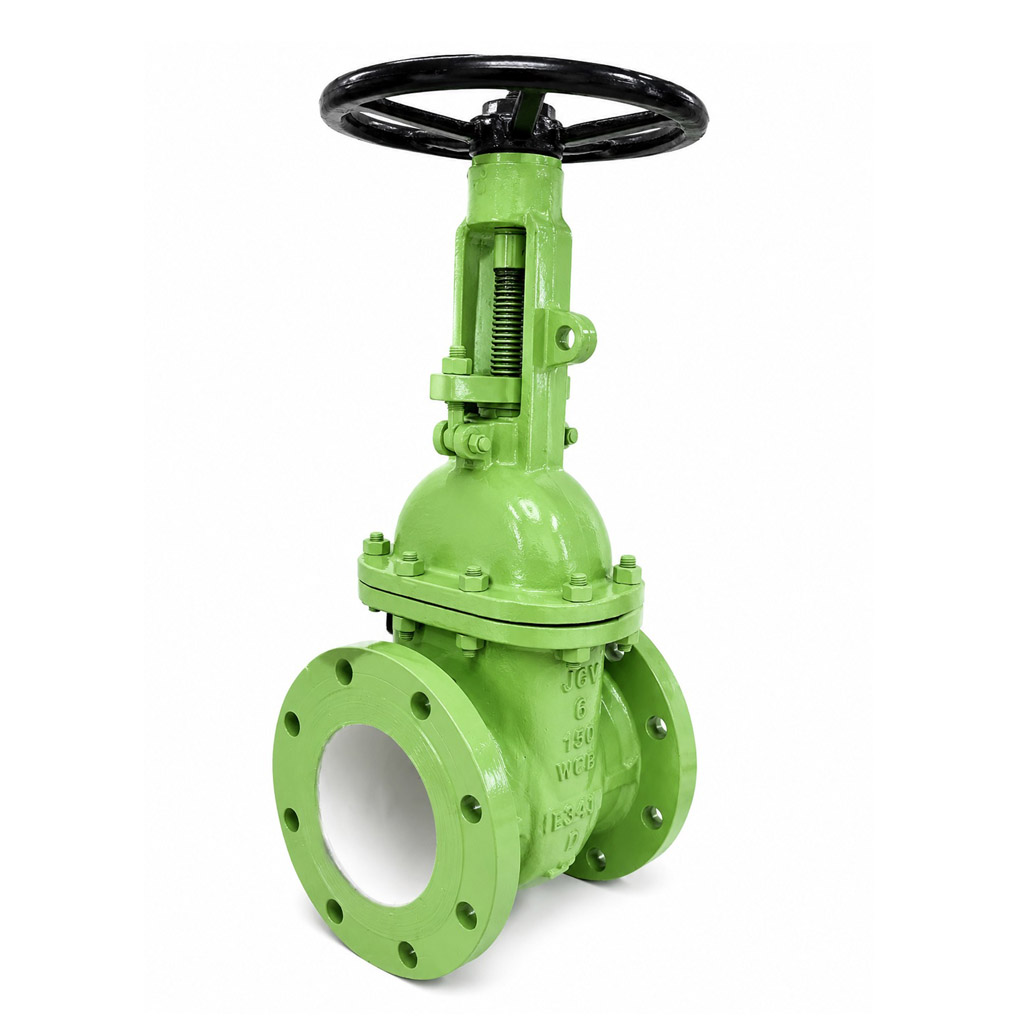

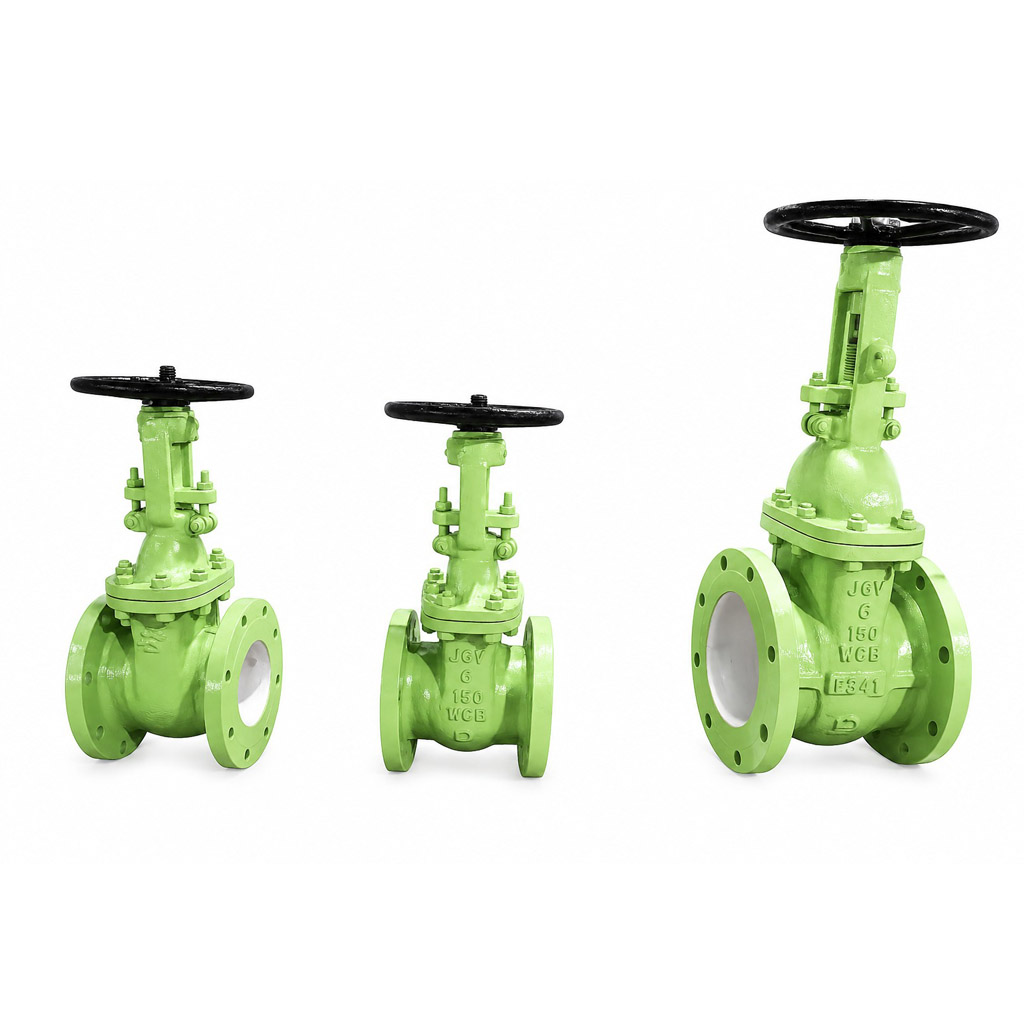

Gate Valves Overview
J G Valves is a leading Manufacturers, Suppliers, Provider, Refurbishers, and Exporters of Gate Valves in Mumbai, Navi Mumbai, Thane, and India. Our Gate Valves are widely used to ensure full flow, prevent backflow, maintain operational safety, and regulate fluid systems efficiently across pipelines and industrial applications.
A Gate Valve is a valve that opens by lifting a barrier (gate) out of the path of the fluid. Gate Valves require very little space along the pipe axis and hardly restrict the flow of fluid when the gate is fully opened. The gate faces can be parallel but are most commonly wedge-shaped (in order to be able to apply pressure on the sealing surface).
JGV offers a quality-approved range of Gate Valves as per prevailing industry standards and client specifications & designs, manufactured using high-grade raw materials to achieve maximum client satisfaction.
Our Gate Valves are designed for reliable, full-flow operation and precise control in industrial, water, and chemical systems. Constructed with high-quality materials and precision engineering, these valves provide leak-proof sealing, long-lasting durability, and smooth operation under high-pressure and high-temperature conditions.
JGV Types Of Gate Valves
JGV Gate Valve Range & Specification
| Size | : | 50 mm (1/2″) – 1200 mm (48″) |
| Body & Type | : | Bolted Bonnet (BB) / Pressure Seal Bonnet (PSB), OS & Y |
| Operation | : | Hand Wheel, Gear, Actuator (Pneumatic, Electrical) |
| Design Standard | : | API 600 / 603, ANSI B16.34, Face to Face ANSI B16.10, Flanged ANSI B16.5 |
| Pressure Rating | : | PN 6, PN 10, PN 16, PN 25, PN 40, PN 64, 150#, 300#, 600#, 900#, 1500#, 2500# |
| Testing Standard | : | API 598, Face to Face ANSI B16.10, Flange Drilling ANSI B16.5 RF Serrated |
| End Connection | : | Butt-weld, Flanged RF Serrated |
| Material Of Construction | : |
Standard - BB: WCB / WCC, LCB / LCC, CF8, CF8M, CF3, CF3M PSB: WCB/WCC, CF8, CF8M, WC1, WC6, WC9, C5, C12, C12A On Request: CN7M, CF8C, Duplex Gr. 4A, Super Duplex Gr. 5A / 6A, Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
| Trim | : | 13% CR / SS 410, SS 304, SS 316, SS 304L, SS 316L, Gun Metal |
| Customization (On Request) | : |
|
Pressure Seal Gate Valve
| Size | : | 50MM to 300MM |
| Body & Type | : | Pressure Seal Bonnet, OS & Y Type |
| Operation | : | Hand Wheel, Gear, Actuator (Pneumatic, Electrical) |
| Design Standard | : | API 600 / ANSI B16.34 |
| Pressure Rating | : | 900#, 1500#, 2500# |
| Testing Standard | : | API 598, Face to Face ANSI B16.10, Flange Drilling ANSI B16.5 RF Serrated |
| End Connection | : | Flanged, Butt Weld |
| Material Of Construction | : | WCB, WCC, WC1, WC6, WC9, C5, C12, C12A, CF8, CF8M |
| Trim | : | 13% Cr. / SS 410, Stellited / Hard Faces, SS304, SS316 |
| Other Grades on Request | : | CF3, CF3M, CN7M, CF8C, Duplex Gr. 4A, Super Duplex Gr. 5A, Super Duplex Gr. 6A, Nickel Alloy, Monel, Hastelloy, Inconel, SS 904L etc. |
| Customization (On Request) | : |
|
Forged Steel Gate Valve
| Size | : | 15 mm (1/2″) – 50 mm (2″) |
| Body & Type | : | Bolted Bonnet (BB) / Welded Bonnet (WB), Solid Wedge, OS & Y, Full Bore, Nipple Extension |
| Operation | : | Hand Wheel |
| Design Standard | : | API 602 / ANSI B16.34 |
| Pressure Rating | : | 800#, 1500#, 2500# |
| Testing Standard | : | API 598 |
| End Connection | : | Screwed BSP / NPT, Socket Weld, Flanged End |
| Material Of Construction | : | A105, LF2, F304, F316, F304L, F316L, F11, F22, F5, F91, F51, F53, Monel, Inconel, Hastelloy etc. |
| Trim | : | Standard Trim Choice As Per API 602 Chart (Trim 5, Trim 8, Trim 12 etc.) |
General Applications:
Used in many industrial applications including the oil and gas industry, pharmaceuticals, manufacturing, automotive and marine for following advantages:
- They have good shut off characteristics.
- They are bi-directional
- The pressure loss through the valve is minimal
- Used both above ground and underground applications. Non-rising stem gate valves are very popular on ships, in underground applications, or where vertical space is limited because they don’t take up extra space.
