Double Block & Bleed Valve
Considering our ever time ongoing developmental process and progress, JGV Team is glad to introduce our new additions – DOUBLE BLOCK & BLEED VALVE & MANIFOLD VALVE in the current wide range of valves we manufacture and supply.

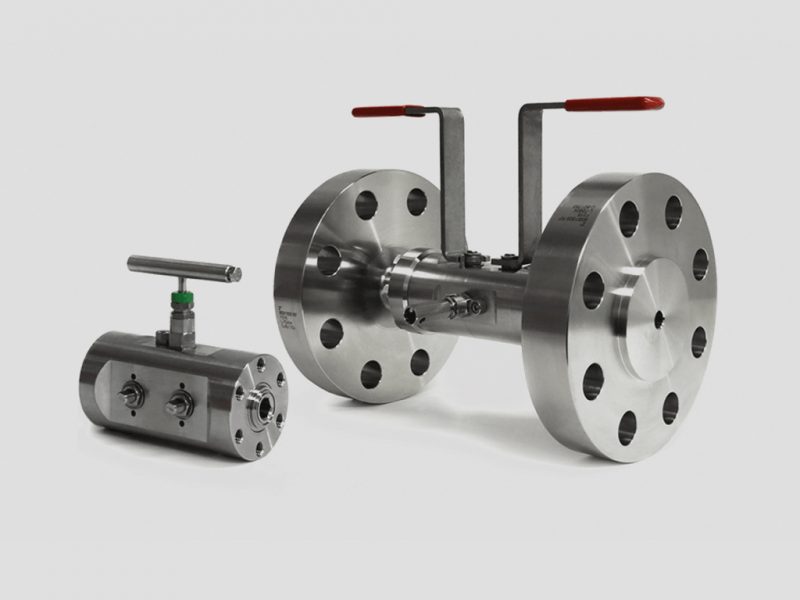

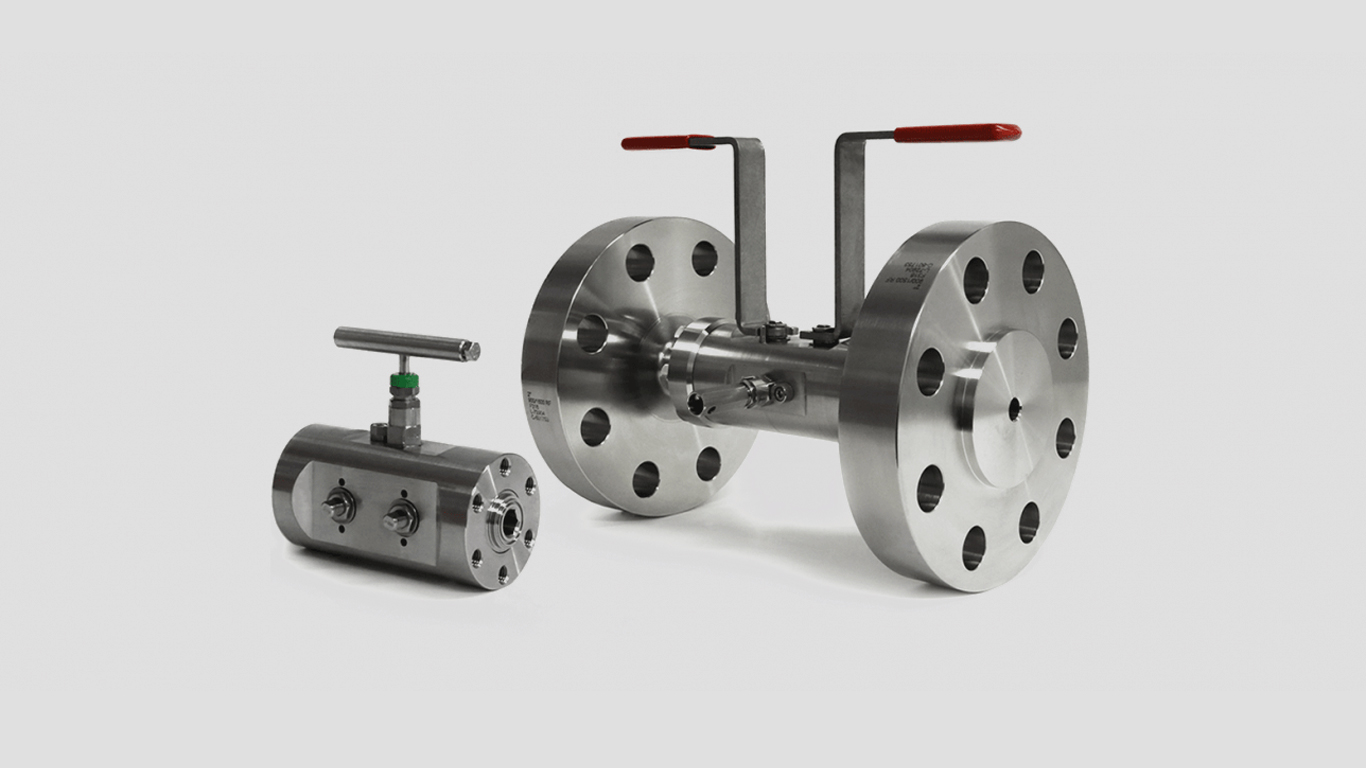

Double Block & Bleed Valve

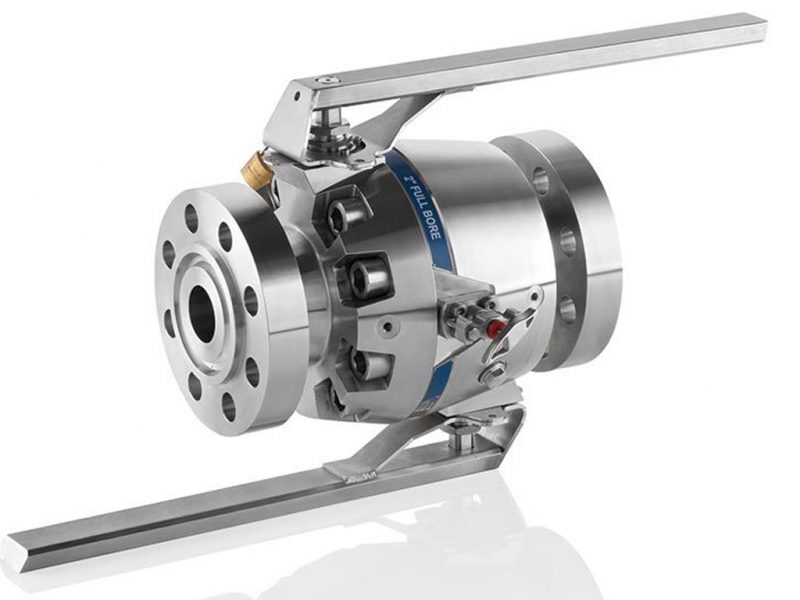

DOUBLE BLOCK & BLEED VALVE (DBBV) is a single valve with two seating surfaces that, in the closed position, provides a seal against pressure from both ends of the valve together with a means of venting or bleeding the cavity between the seating surfaces.

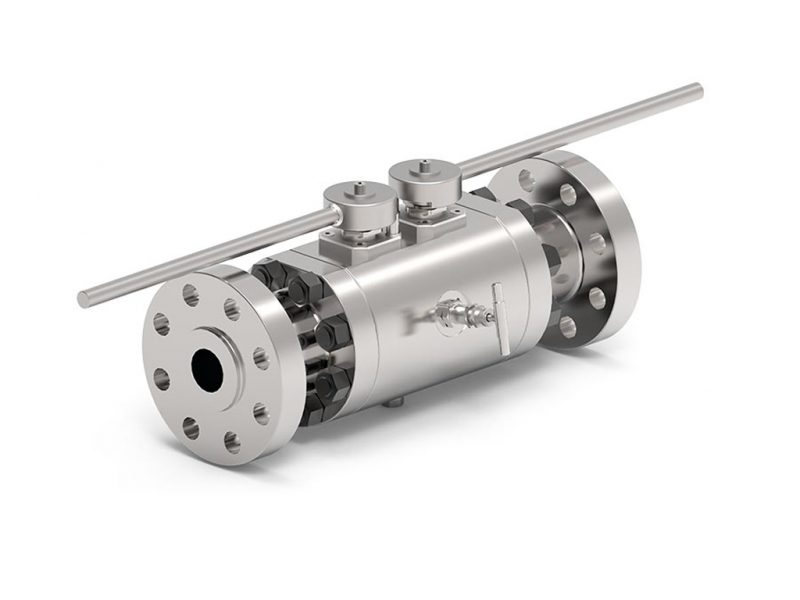

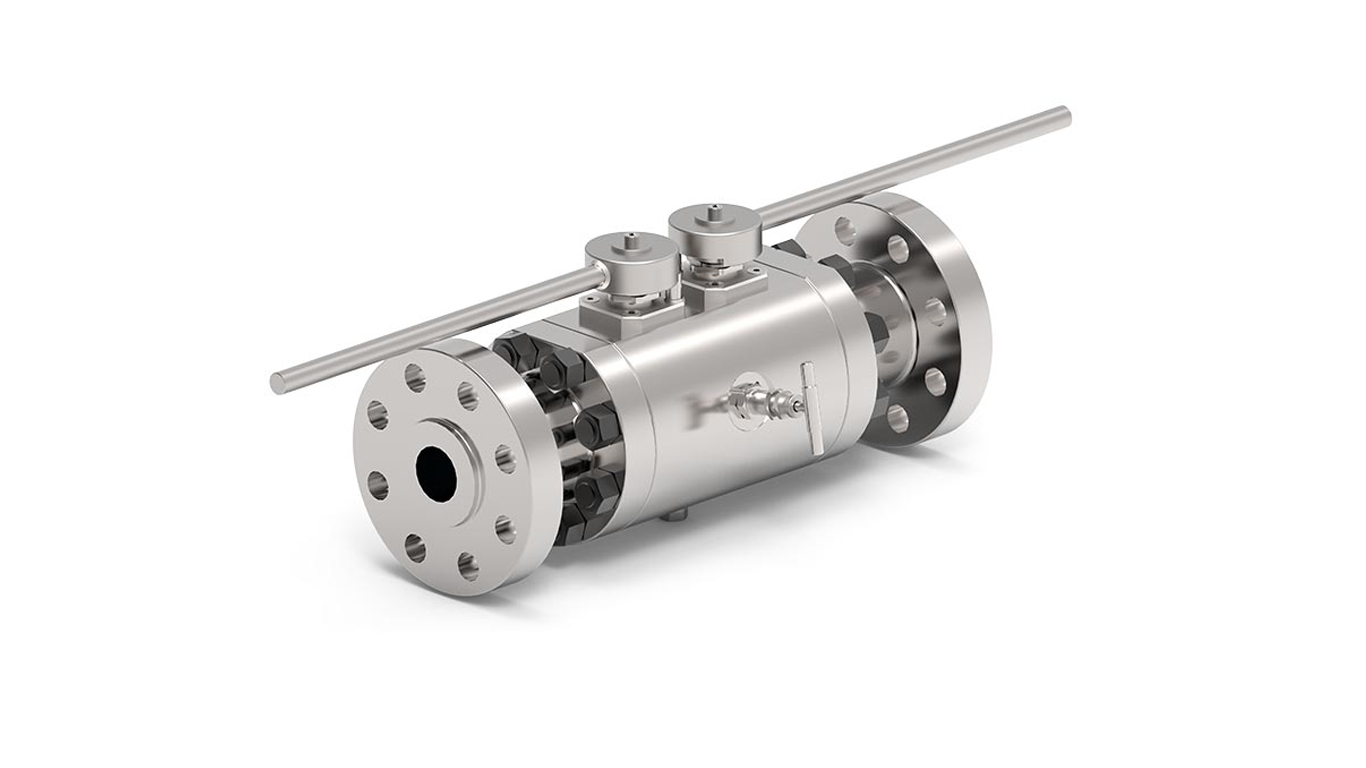

Double isolation and bleed (DIB) with two independently seating valves inside, along with a bleed or drain valve, can isolate either side of the valve (bi-directionally) to vent or bleed the cavity and isolate piping.

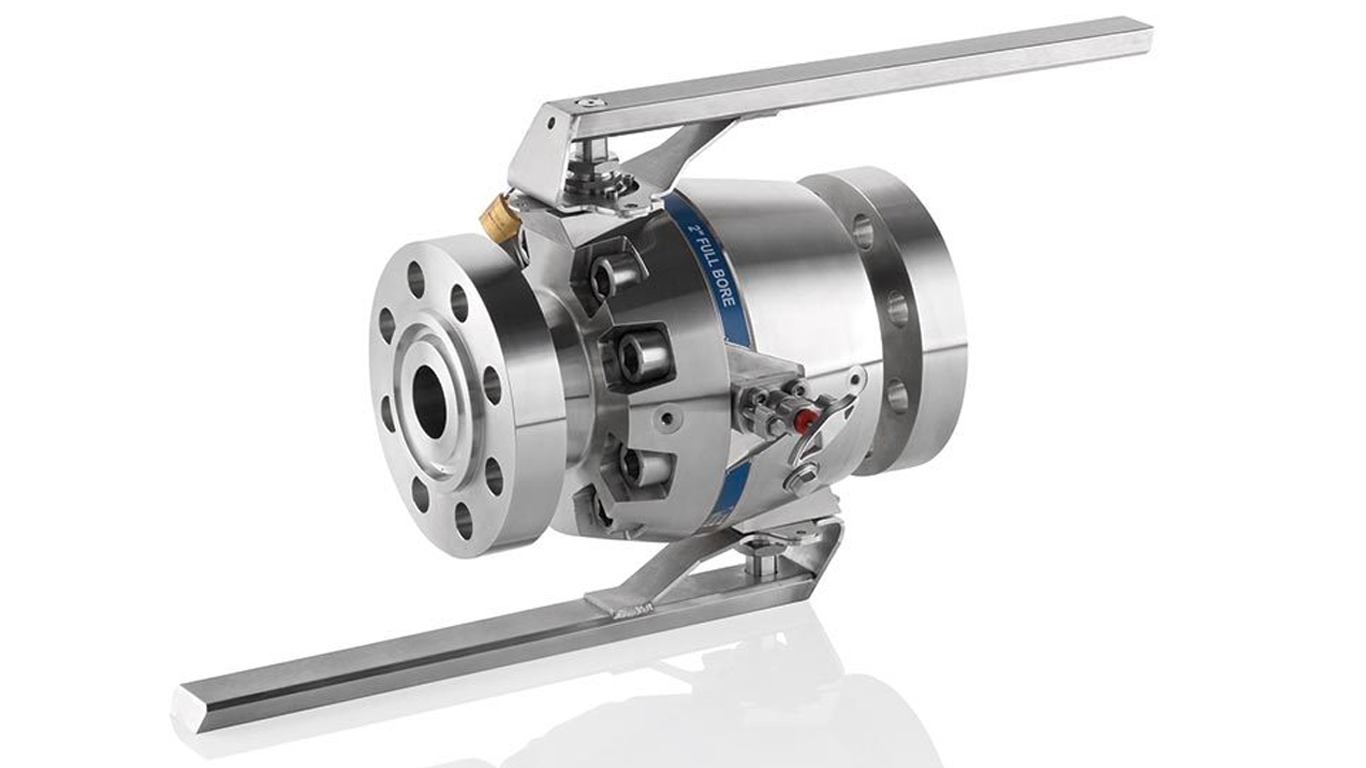

Trunnion style Double Block and Bleed Valve with single valve can isolate piping on both sides of the valve (uni-directionally) to vent or bleed the valve cavity between the seats.
Note : Single Block & Bleed Valve can also be supplied on request.
Features & Benefits
- Monitor potentially explosive vapors during hot work.
- Dual port system allows water circulation between seals, providing improved cooling during pre/post weld procedures.
- Uses less than a gallon (3.8L) of test media, reducing fill time and waste.
- ASME PCC-2 Type IV Testing Device.

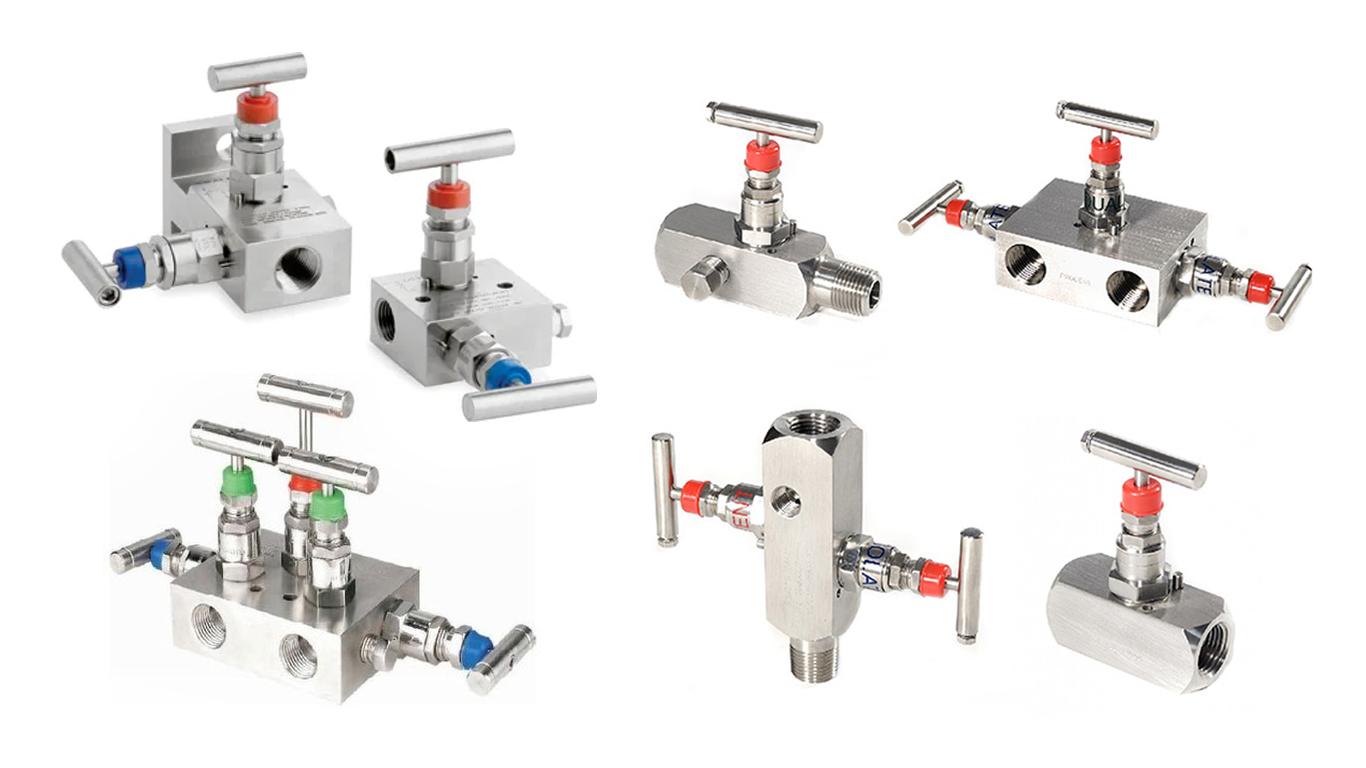

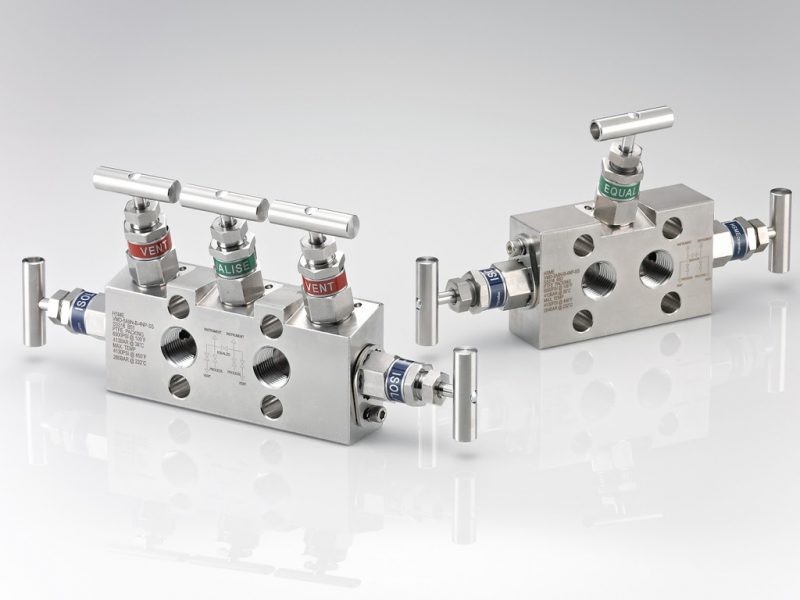

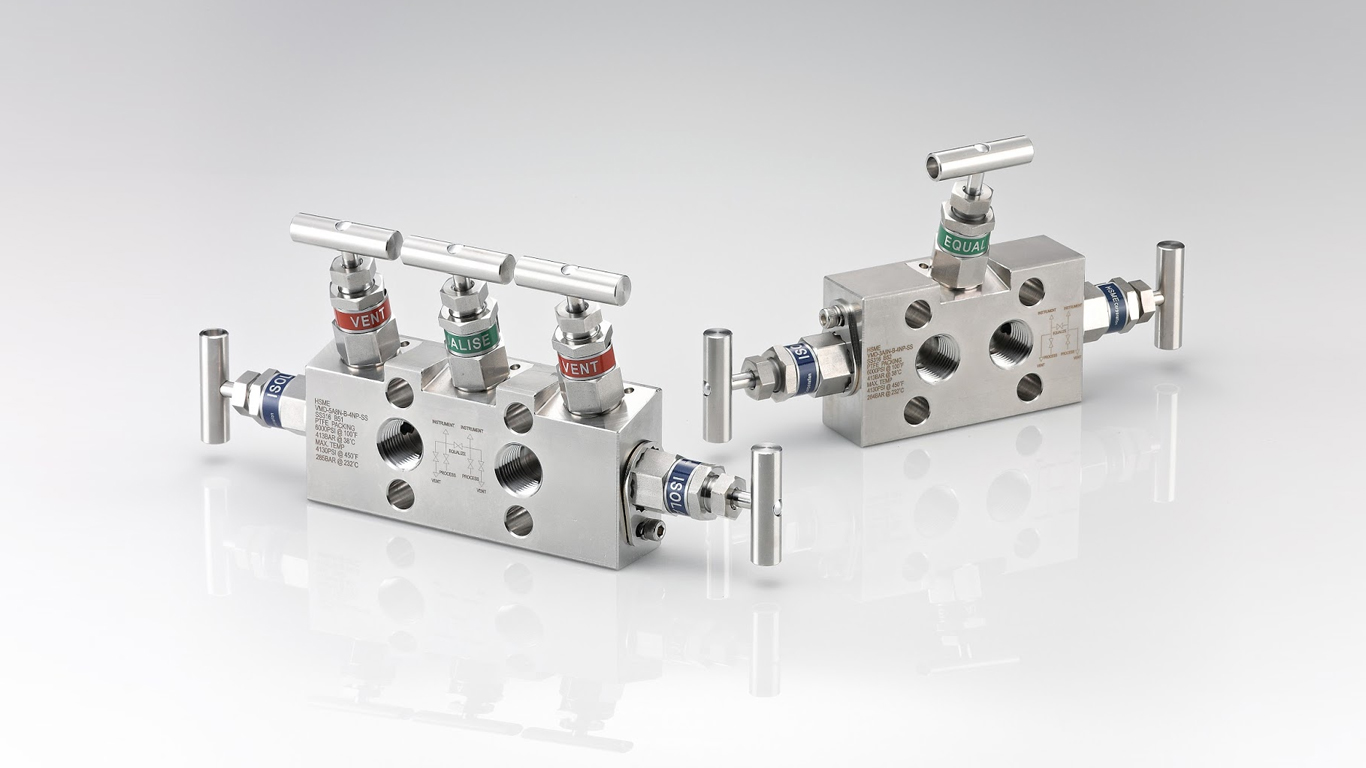

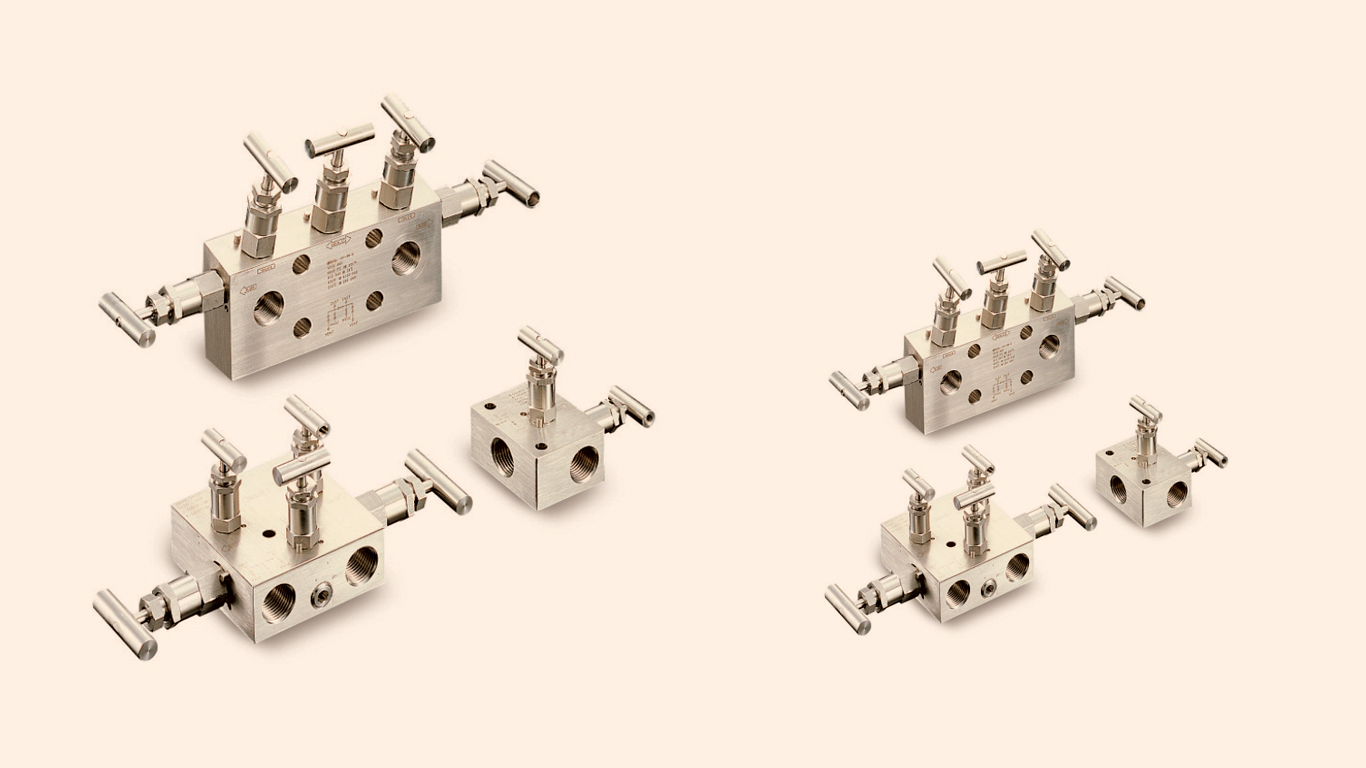

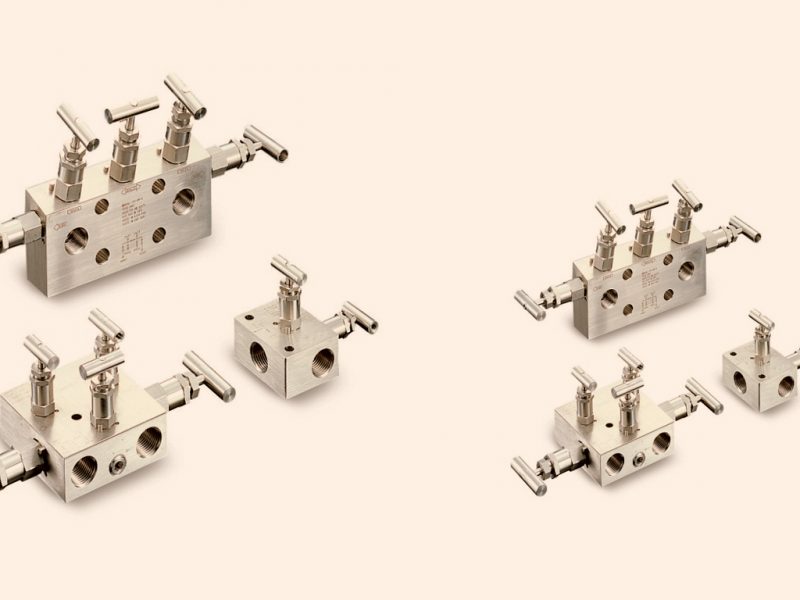

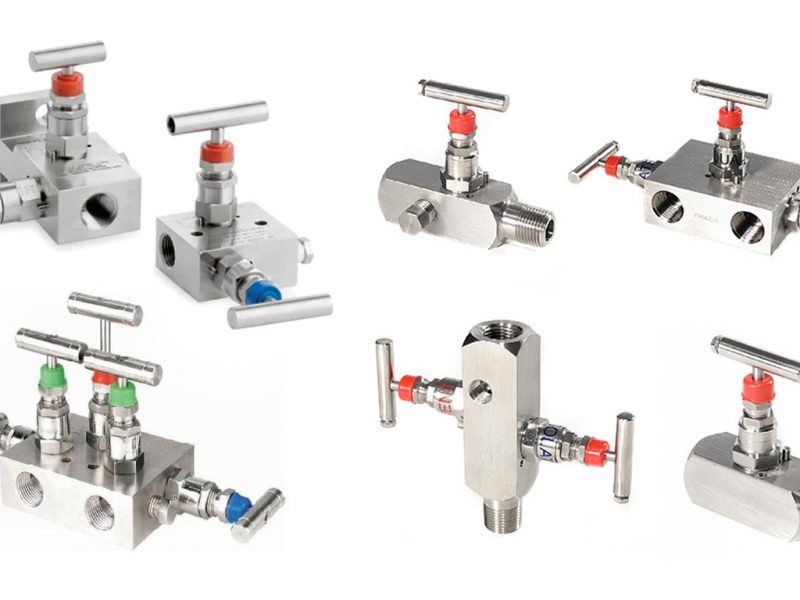

JGV Types Of Manifold Valves
MANIFOLDS are equipment which connect two or more valves of a hydraulic system. A variety of block/isolate valves can be combined into a single body configuration. Each valve has a separate opening to connect a pipeline and they are available in 2-Way, 3-Way and 5-Way types.
JGV Manifolds are compact in design and reduce installation costs, piping connections and maintenance. They improve flow efficiency, reduce pressure drop, minimize oil leakage and provide an organized piping layout for hydraulic and instrumentation systems.
JGV Manifold Valve Range & Specification
From Forge & Cast
| Size | : | 20 mm (1/2") |
| Body & Type | : | T Type, R Type, 2 Way, 3 Way |
| Operation | : | Lever |
| Design Standard | : | ASME B16.34 |
| Pressure Rating | : | 6000 PSI, 10000 PSI |
| Testing Standard | : | API 598 |
| End Connection | : | Screwed |
| Material Of Construction | : | Standard – SS304, SS316 On Request – CN7M, CF8C, Duplex Gr.4A, Super Duplex Gr.5A / 6A, Nickel Alloy, Monel, Hastelloy, Inconel, SS904L etc. |
Applications:
MANIFOLDS are used in hydraulics as well as pneumatics to consolidate plumbing. MANIFOLD VALVES are mainly used for general plant service, standard pressure and differential pressure instrumentation devices, pressure equalization, venting, and block and bleed applications.
